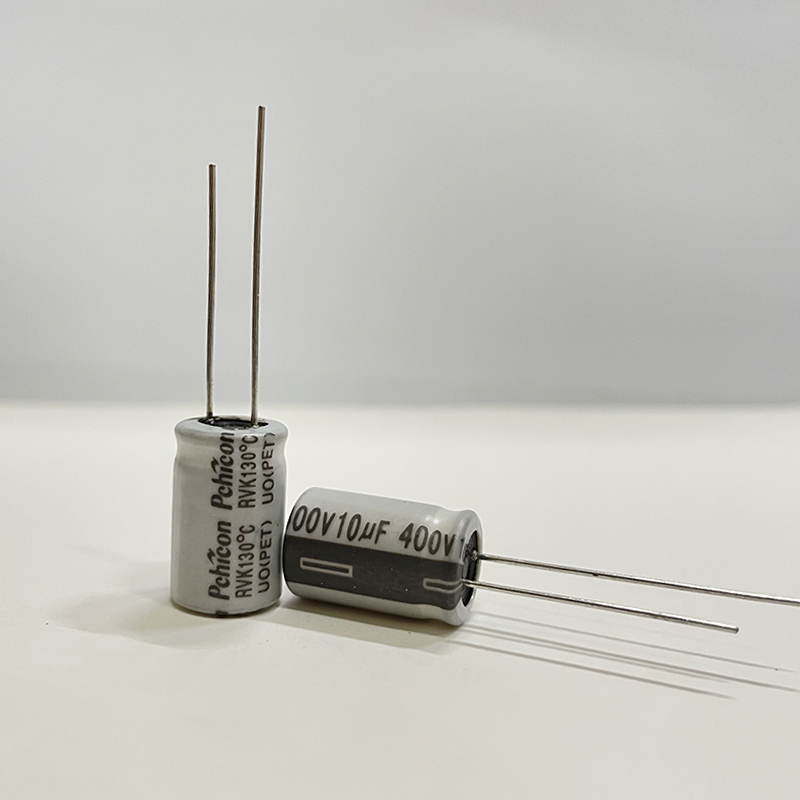

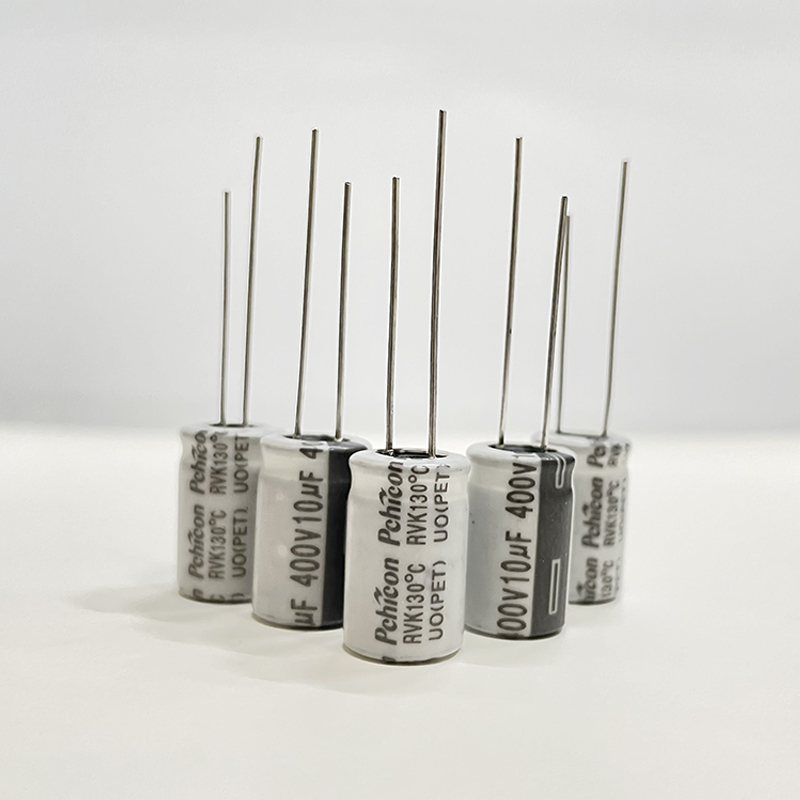

● 贴片，耐高温品
● 适用于高密度，全自动表面贴装，高温回流焊
● 符合RoHS
| 特点 | 贴片，高温品 |
| 温度 | -40～+105℃ |
| 额定电压 | 10V～450V |
| 容量 | 1~470μF |
| 寿命 | 1K~5K Hrs |
| 项目Item | 特性Characteristics | ||||||||||||||||||||||||||||||||||||||||||||||||
|
工作温度范围 Operating temperature range |
-40～+130℃ | ||||||||||||||||||||||||||||||||||||||||||||||||
|
额定电压范围 Rated voltage range |
16～450Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
|
标称容量允许偏差 Nominal capacitance tolerance |
±20% | （at25℃120Hz） | |||||||||||||||||||||||||||||||||||||||||||||||
|
漏电流 Leakage current |
10～100Vdc | 160～450Vdc | 25℃ | 25℃，120Hz | 25℃ | ||||||||||||||||||||||||||||||||||||||||||||
|
I=0.03CV or 4μA2min Whichever is greater |
I=0.04CV+100μA1min |
I：漏电流 I：Leakage current |
C：标称容量 C：Nominal capacitance |
V：额定电压 V：Rated voltage |
|||||||||||||||||||||||||||||||||||||||||||||
|
损失角正切值(tanδ) Dissipation factor |
额定电压(Vdc)Rated voltage | 16 | 25 | 35 | 50 | 63 | 80 | 100 | 160 | 200 | 250 | 400 | 450 | at25℃120Hz | |||||||||||||||||||||||||||||||||||
| tanδ(Max) | 0.26 | 0.16 | 0.14 | 0.14 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.24 | 0.24 | |||||||||||||||||||||||||||||||||||||
|
当容量大于1000μF时，容量每增加1000μF，tanδ增加0.02 Capacitance＞1000μF：tanδ increases by 0.02 for each 1000μF from below value |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
温度特性 Temperature characteristics |
额定电压(Vdc)Rated voltage | 16 | 25 | 35 | 50 | 63 | 80 | 100 | 160 | 200 | 250 | 400 | 450 | at 120Hz | |||||||||||||||||||||||||||||||||||
|
阻抗比Max Impedance ratio |
Z(-25℃)/Z(+20℃) | 2 | 2 | 2 | 2 | 2 | 2 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||||||||||||||||||||||||||||||||
| Z(-40℃)/Z(+20℃) | 6 | 4 | 3 | 3 | 3 | 3 | 3 | 10 | 10 | 10 | 16 | 16 | |||||||||||||||||||||||||||||||||||||
|
耐久性 Load life |
在130℃环境中，连续加载直流电压与额定纹波电流规定时间后，待产品温度恢复到25℃进行测量时，应满足以下要求： In the environment of 130℃, after continuous loading of DC votage and rated ripple current for specified time, the product shall be tested after its temperature back to 25℃, and following requirements should be met: |
||||||||||||||||||||||||||||||||||||||||||||||||
| Rated voltage | 160~450Vdc(3000Hrs) | 16~100Vdc | |||||||||||||||||||||||||||||||||||||||||||||||
|
容量变化 Capacitance change |
≤初始值的±30% ≤±30% of the initial value |
≤初始值的±30% ≤±30 of the initial value |
Φ D(mm) | Life(Hrs) | |||||||||||||||||||||||||||||||||||||||||||||
|
损失角正切值 Dissipation factor |
≤初始规格值的300% ≤300% of the initial specification value |
≤初始规格值的300% ≤300% of the initial specification value |
ΦD≤6.3 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||
| 8≤ΦD≤10 | 2000 | ||||||||||||||||||||||||||||||||||||||||||||||||
|
漏电流 Leakage current |
≤初始规格值 ≤the initial specification value |
≤初始规格值 ≤the initial specification value |
12≤ΦD | 5000 | |||||||||||||||||||||||||||||||||||||||||||||
|
高温贮存 Shelf life |
在105℃环境中，无负载放置1000小时后，待产品温度恢复到25℃进行测量时，应满足以下要求： In the environment of 105℃with 1000 hours of no load, the product shall be tested after its temperature back to 25℃, and following requirements should be met: |
||||||||||||||||||||||||||||||||||||||||||||||||
| Rated voltage | 16~100Vdc | 160~450Vdc | |||||||||||||||||||||||||||||||||||||||||||||||
|
容量变化 Capacitance change |
≤初始值的±30% ≤±30% of the initial value |
≤初始值的±20% ≤±20% of the initial value |
|||||||||||||||||||||||||||||||||||||||||||||||
|
损失角正切值 Dissipation factor |
≤初始规格值的300% ≤300% of the initial specification value |
≤初始规格值的200% ≤200% of the initial specification value |
|||||||||||||||||||||||||||||||||||||||||||||||
|
漏电流 Leakage current |
≤初始规格值200% ≤200% of the initial specification value |
≤初始规格值200% ≤200% of the initial specification value |
|||||||||||||||||||||||||||||||||||||||||||||||
|

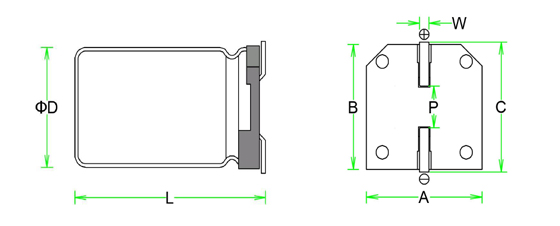

尺寸Size D*L(mm) |
D ±0.5 |
L ±0.5 |
A ±0.2 |
B ±0.2 |
C ±0.2 |
W | P |
| 6.3*7.7 | 6.3 | 7.7 | 6.6 | 6.6 | 7.2 | 0.5~0.8 | 1.9 |
| 6.3*10.5 | 6.3 | 10.5 | 6.6 | 6.6 | 7.2 | 0.5~0.8 | 1.9 |
| 8*10.5 | 8.0 | 10.5 | 8.3 | 8.3 | 9.0 | 0.7~1.1 | 3.1 |
| 8*12.5 | 8.0 | 12.5 | 8.3 | 8.3 | 9.0 | 0.7~1.1 | 3.1 |
| 8*13.5 | 8.0 | 13.5 | 8.3 | 8.3 | 9.0 | 0.7~1.1 | 3.1 |
| 8*15.5 | 8.0 | 15.5 | 8.3 | 8.3 | 9.0 | 0.7~1.1 | 3.1 |
| 10*10.5 | 10.0 | 10.5 | 10.3 | 10.3 | 11.0 | 0.7~1.1 | 4.5 |
| 10*12.5 | 10.0 | 12.5 | 10.3 | 10.3 | 11.0 | 0.7~1.1 | 4.5 |
| 10*13.5 | 10.0 | 13.5 | 10.3 | 10.3 | 11.0 | 0.7~1.1 | 4.5 |
| 10*16.5 | 10.0 | 16.5 | 10.3 | 10.3 | 11.0 | 0.7~1.1 | 4.5 |
| 12.5*13.5 | 12.5 | 13.5 | 13.0 | 13.0 | 13.7 | 1.0~1.3 | 4.5 |
| 12.5*16 | 12.5 | 16.0 | 13.0 | 13.0 | 13.7 | 1.0~1.3 | 4.5 |
| Freq(Hz) Cap(μF) | 120 | 1k | 10k | 100k |
| 16~450 | 0.50 | 0.80 | 0.90 | 1.00 |
|
电压 WV (Vdc) |
容量 Cap (μF) |
尺寸 Size D*L(mm) |
tanδ |
额定纹波电流(mA) Rated ripple current |
| 16 | 100 | 6.3*7.7 | 0.26 | 102 |
| 220 | 8*10.5 | 0.26 | 195 | |
| 330 | 10*10.5 | 0.26 | 280 | |
| 470 | 10*13.5 | 0.26 | 310 | |
| 25 | 47 | 6.3*7.7 | 0.16 | 102 |
| 100 | 8*10.5 | 0.16 | 195 | |
| 220 | 10*10.5 | 0.16 | 280 | |
| 330 | 10*13.5 | 0.16 | 300 | |
| 35 | 33 | 6.3*7.7 | 0.14 | 100 |
| 47 | 6.3*7.7 | 0.14 | 105 | |
| 100 | 8*10.5 | 0.14 | 195 | |
| 220 | 10*10.5 | 0.14 | 280 | |
| 50 | 10 | 6.3*7.7 | 0.14 | 70 |
| 22 | 6.3*7.7 | 0.14 | 95 | |
| 33 | 6.3*7.7 | 0.14 | 102 | |
| 47 | 10*10.5 | 0.14 | 225 | |
| 100 | 10*13.5 | 0.14 | 420 | |
| 63 | 22 | 6.3*7.7 | 0.20 | 55 |
| 33 | 8*10.5 | 0.20 | 88 | |
| 47 | 8*10.5 | 0.20 | 112 | |
| 100 | 10*12.5 | 0.20 | 245 | |
| 80 | 10 | 8*10.5 | 0.20 | 85 |
| 22 | 8*10.5 | 0.20 | 95 | |
| 33 | 8*10.5 | 0.20 | 118 | |
| 47 | 10*10.5 | 0.20 | 225 |
|
电压 WV (Vdc) |
容量 Cap (μF) |
尺寸 Size D*L(mm) |
tanδ |
额定纹波电流(mA) Rated ripple current |
| 100 | 10 | 8*10.5 | 0.20 | 70 |
| 22 | 8*10.5 | 0.20 | 95 | |
| 33 | 10*10.5 | 0.20 | 168 | |
| 47 | 10*10.5 | 0.20 | 215 | |
| 68 | 10*12.5 | 0.20 | 245 | |
| 160 | 10 | 10*10.5 | 0.20 | 70 |
| 15 | 10*13.5 | 0.20 | 105 | |
| 22 | 12.5*16 | 0.20 | 170 | |
| 200 | 10 | 10*10.5 | 0.20 | 85 |
| 15 | 10*13.5 | 0.20 | 128 | |
| 22 | 12.5*16 | 0.20 | 165 | |
| 250 | 4.7 | 10*10.5 | 0.20 | 70 |
| 10 | 10*10.5 | 0.20 | 115 | |
| 15 | 12.5*16 | 0.20 | 136 | |
| 400 | 1 | 6.3*10.5 | 0.24 | 15 |
| 1.5 | 6.3*10.5 | 0.24 | 18 | |
| 2.2 | 8*10.5 | 0.24 | 32 | |
| 3.3 | 10*10.5 | 0.24 | 60 | |
| 4.7 | 10*10.5 | 0.24 | 75 | |
| 5.6 | 10*13.5 | 0.24 | 115 | |
| 6.8 | 10*13.5 | 0.24 | 125 | |
| 450 | 2.2 | 10*10.5 | 0.24 | 30 |
| 3.3 | 10*13.5 | 0.24 | 42 | |
| 4.7 | 12.5*16 | 0.24 | 55 |
